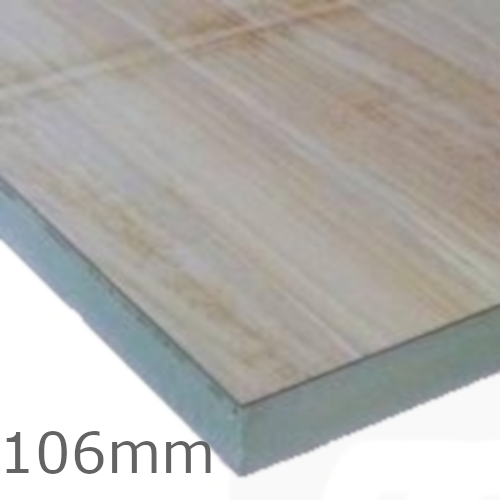

106mm Celotex TD4000 PIR Flat Roof Insulation Board with Plywood

106mm Celotex TD4000 PIR Flat Roof Insulation Board with Plywood
  • Product Code: A1-176
  • Delivery Time: 1 - 5 working days
  • Due to nationwide shortage of PIR insulation lead time may be longer for this product.
  • Brand: Celotex
  • (Tech. support: 01473820850)
  • Model: TD4000- 2400 x 1200
  • Weight: 6.98kg
Product discontinued. Click Get Best Price to request a quotation and we will recommended an equivalent product.
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

106mm Celotex TD4000 PIR Flat Roof Insulation Board with Plywood

Width: 1200mm
Length: 2400mm
Board Coverage: 2.88m2
Weight/m2: 2.42kg
Thermal Conductivity: 0.022W/mK
R-Value: 4.55m2K/W
Compressive Strength: 120kPa

Celotex TD4000 comprises a polyisocyanurate rigid foam insulation core, with a thermal conductivity of 0.022 W/mK, and low emissivity aluminium foil facings on both sides bonded to a layer of 5.5mm WBP exterior grade plywood.

APPLICATION

Celotex TD4000 is purpose designed for use in light traffic flat roof applications.

CHARACTERISTICS

  • Is a three-in-one product to provide deck, vapour control layer and insulation
  • Provides reliable long term energy savings for buildings
  • Is ideal for use in occasionally trafficked applications
  • Provides warm roof construction due to over joist installation
  • Is rapidly installed and weatherproofed
  • Accepts a wide variety of weathering systems
  • Is available in a standard board size of 1200mm x 2400mm

CERTIFICATION

  • The insulation component of Celotex TD4000 is A+ rated when compared to the BRE Green Guide 2008
  • Celotex TD4000 is CFC/HCFC free with zero ozone depletion potential (ODP) and low global warming potential (GWP)
  • Celotex TD4000 received CE marking compliance to BS EN 13165:2001
  • The board is manufactured in accordance with quality management systems with BS EN ISO 9001:2000 by Celotex Limited
