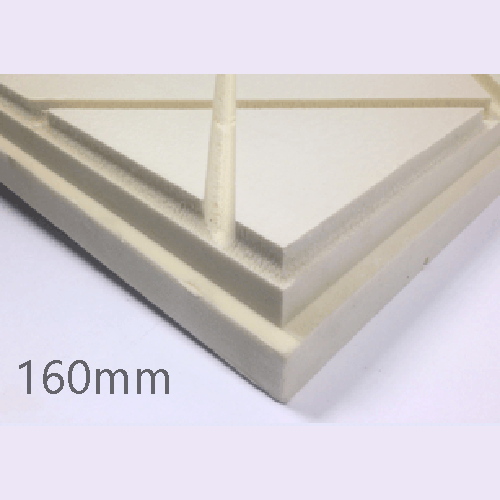

160mm Cellecta Hexatherm XDRAiN Drainage Channel Inverted Roof Board - XPS Insulation
160mm Cellecta Hexatherm XDRAiN Drainage Channel Inverted Roof Board - XPS Insulation
- Product Code: A1-1679
- Delivery Time: 2 - 4 days
- Brand: Cellecta (Tech. support: 01634296677)
- Model: 600x1250mm - 0.75m2
- Weight: 4.08kg
Our ratings on 08-11-2024:
4.8 out of 5
160mm Cellecta Hexatherm XDRAiN Drainage Channel Inverted Roof Board - XPS Insulation
Width: 600mm
Length: 1250mm
Density: 34kg/m3
Weight/m2: 5.44kg
Weight: 4.08kg
Thermal Conductivity: 0.034W/mK
R-Value: 4.71m2K/W
Compressive Strength: 300kPa

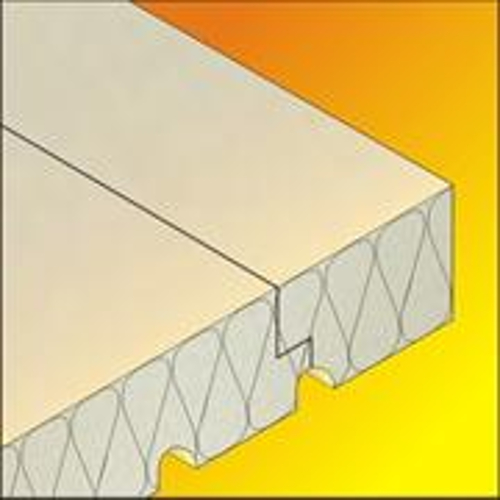

160mm Cellecta Hexatherm XDRAiN is a high performance extruded polystyrene inverted thermal roof boards, featuring integrated drainage channels on their underside, which speeds up the shedding of rainwater from the roof, eliminating the need for a separating drainage mat, making them ideal for green roofs. Manufactured in accordance with BS EN 13374 and tested to BS EN 12267.
CHARACTERISTICS
- Easy to install,
- Integral drainage channels
- 100% recyclable,
- CFC and HCFC free,
- Closed cell structure,
- High compressive strength,
- Life-long thermal performance,
- Zero ODP & Less than 5 GWP.
APPLICATION
Cellecta Hexatherm XDRAiN thermal roof insulation board is used where speeding up the shedding of rainwater is a necessity.
CERTIFICATION
Manufactured in accordance with BS EN 13374 and tested to BS EN 12267
XDrain_Inverted_Flat_Roof_Ballasted_Timber_Decking_Thermal_Insulation.pdf
