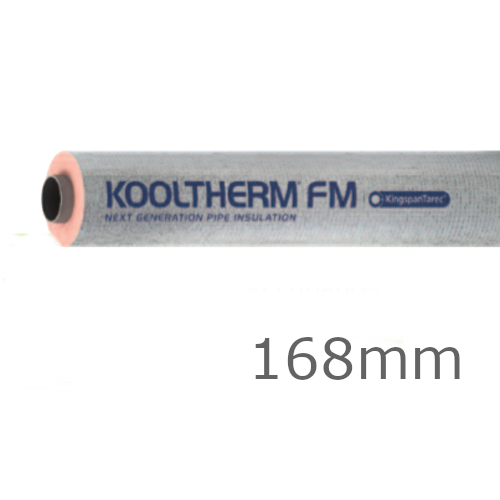

168mm Bore 15mm Thick Kooltherm FM Pipe Insulation
- Product Code: A1-2528
- Delivery Time: 1 - 2 days
- Brand: Kingspan (Tech. support: 01544388601)
- Model: Kooltherm 168/15mm
168mm Bore 15mm Thick Kooltherm FM Pipe Insulation
Kooltherm FM Pipe Insulation comprises sections of Kooltherm FM Insulation faced with a factory-applied foil vapour barrier jacket autohesively bonded to the insulation core during manufacture. Kooltherm FM Pipe Insulation is available in a range of thicknesses to suit different performance specifications and may be used on mild steel, stainless steel, carbon steel, copper and plastic pipework in standard and non-standard pipe diameters.
Kingspan Tarec premium performance insulation products are the thinnest and most efficient products commonly available for the insulation of pipework in building services/HVAC, process and petrochemical applications and refrigeration services.
The superior thermal performance of Kooltherm FM Insulation derives mainly from its closed cell properties. Its closed cell structure has been optimised to resist heat transfer. The closed cells have a small solid to void volume ratio, are small and uniform in size, and their construction very fine with extremely thin walls and minimum point contacts (struts). They are filled with a thermally efficient CFC/HCFC-free blowing agent that has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP). As a result of its closed cell structure, Kooltherm FM Insulation is unaffected by air infiltration problems that can be experienced with mineral fibre and which can reduce thermal performance. Kooltherm FM Pipe Insulation products and systems have a densely cross-linked structure that makes them difficult to ignite and when subjected to fire, the outer surface forms a strong carbonaceous layer that limits heat generation and retards further flame spread.
- 168mm Bore 15mm Thick
- Superior thermal performance,
- Fast and simple installation reduces costs and time on site,
- Difficult to ignite, when subjected to fire,
- Non-wicking and highly resistant to moisture penetration,
- CFC/HCFC-free,
- Thinnest available insulation
- Manufactured to BS EN ISO 9001:2008 Certificate No. 935626
- Manufactured to BS EN ISO 9001:2008 Certificate No. 388-2QMS
- BS EN ISO 14001:2004 Certificate No. 388-2EMS
- BS OHSAS 18001:2007 Certificate No. 388-2H
Kooltherm_FM_Pipe_Installation_Quick_Guide.pdf
