200mm Ancon 63 Resin/Mechanical Wall Tie - RM63 Remedial Wall Tie - for 35-60mm cavities

200mm Ancon 63 Resin/Mechanical Wall Tie - RM63 Remedial Wall Tie - for 35-60mm cavities
  • Product Code: A1-5367
  • Delivery Time: 2 - 3 working days
  • Brand: Ancon
  • (Tech. support: : +44(0)1142381238)
  • Model: 200mm
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Show other lengths

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

200mm Ancon 63 Resin/Mechanical Wall Tie - RM63 Remedial Wall Tie - for 35-60mm cavities

Length: 200mm
Pack Quantity: 1
Cavity width: 35-60mm

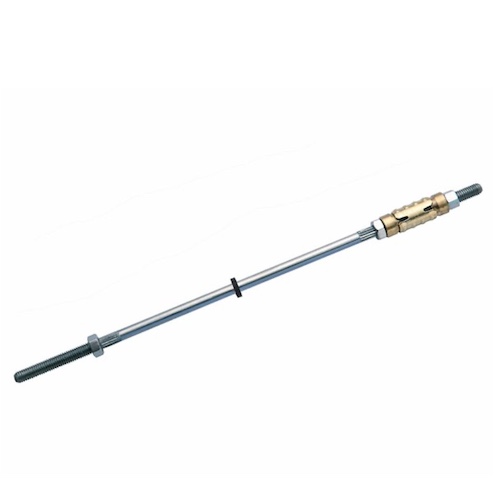

200mm Ancon 63 Resin/Mechanical Wall Tie is a masonry remedial wall tie for use for tying together two leaves of solid walls. This RM63 tie has mechanical expanders at one end and a grooved end at the other end to be fixed to the inner leaf that is perforated, or of low-density or friable material. The resin fixing may be used to eliminate any imposed stress. Requires 11mm Ø holes. These remedial ties are used on older building, where brickwork had been cracked due to corrosion of old ties.

CHARACTERISTICS
  • Masonry-to-masonry remedial wall tie,
  • Resin/mechanical remedial wall tie,
  • For 35-60mm cavities

Brand: Ancon Model: 435mm
Delivery Time: 1-3 working days
435mm Ancon Teplo-BFR Wall Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure. This ultra-low thermal conductivity wall tie can be fixed to concrete, masonry, steel and timber substrates. Ancon Teplo-BFR Wall Tie is a 7mm ..
Brand: Ancon Model: 250mm
Delivery Time: 2 - 3 working days
250mm Ancon Staifix RT2 Wall Tie is a low conductivity stainless steel general purpose wall tie for use in domestic houses and small commercial buildings up to 15 metres in height. Wall ties should be pressed down in fresh mortar. They should be surrounded by mortar and they should be inst..
£8.24
£9.89 inc VAT
Brand: Ancon Model: 180mm
Delivery Time: 2 - 3 working days
180mm Staifix Resin/Resin Wall Tie is a masonry remedial wall tie for use for tying together two leaves of solid walls. This RR tie is used where mechanical expanders are unusable. Resin is added to both ends. A plastic sieve can be used to retain resin and is particularly useful in perfor..
Brand: Ancon Model: 200mm
Delivery Time: 3 - 5 days
200mm AC 31 Wall Tie is a masonry remedial wall tie for tying together two leaves of solid walls, where bricks are removed then replaced in the outer leaf. The wavy end is resin-bonded into the inner leaf in a 10mm Ø hole. The triangular end sits in the bed joint. Ancon AC 31 wall tie is s..
Brand: Ancon Model: 82mm - bag of 100
Delivery Time: 2 - 5 working days
Ancon HTSS-82-2PT-W Screws are used to fix an outer leaf of brickwork through any kind of insulation to a steel frame structure. These screws feature a shaped drill tip of hardened steel that allows installation without pre-drilling. Ancon HTSS-82-2PT-W high thread screws accommodate ..
Brand: Ancon Model: Teplo-BF-CT-25/250
Delivery Time: 2 - 5 working days
Ancon Teplo-BF-CT-25/250 Channel Wall Tie made of basalt fibres set in a resin matrix to provide a low thermal conductivity wall tie for 185-209mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. The thermal efficiency these ties are excluded from U-value calculations t..
