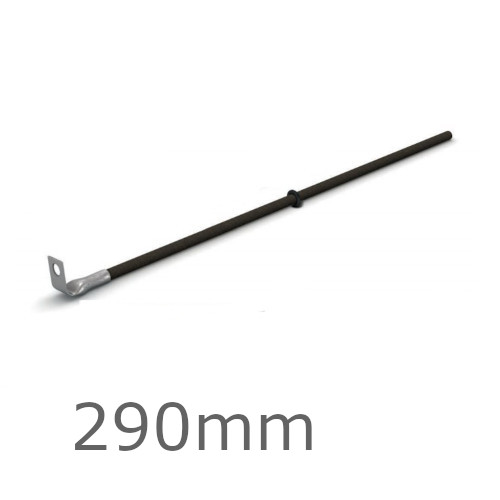

290mm Ancon Teplo-L-Tie - 7mm diameter

290mm Ancon Teplo-L-Tie is an ultra-low thermal conductivity wall tie manufactured from basalt fibres set in a resin matrix. It minimises heat loss across an insulated cavity, improving the energy efficiency of a masonry cavity wall. It has stainless steel upstand with a 7mm fixing hole for a secondary fixing. It is suitable for surface fixing to masonry and structural timber, steel or concrete frames. The Teplo-L-Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and the structure. It is suitable for fixing to timber, steel, concrete and any type of masonry. The Teplo-L-Tie is suitable for buildings requiring 120-minute fire resistance. Teplo-L-Ties should achieve an embedment depth of 65mm in the outer leaf.

Suitable Fixings

• Masonry: Plug and Screw
• Concrete: Plug and Screw, Expansion Bolt
• Steel: Set Screw, Self-drilling Screw
• Timber: Countersunk Wood Screw

• 7 mm diameter hole in the upstand suits a variety of fixings,
• Suitable for cavities of 83-100 mm.
• Can be fixed to concrete, masonry, steel and timber.
• Movable 'O' ring drip to prevent water crossing the cavity.
• The Teplo-L-Tie has been independently tested, has BBA Approval and can be used in line with NHBC standards.

• O' rings should be moved along the shank to the open cavity.
• Installed ties should be clear of mortar droppings to allow the drip to function and prevent water from crossing to the inner leaf of masonry.
• The outer leaf brickwork should be kept one course clear during installation of  ties.
