2m Aluminium Rail System Support Track (pack of 25).
Guide Price
2m Aluminium Rail System Support Track (pack of 25).
Guide Price: £251.04 (£301.25 inc VAT)
- Product Code: A1-2929
- Delivery Time: 1 - 2 days
- Brand: Wemico
- Model: 9116
Our ratings on 08-11-2024:
4.8 out of 5
2m Aluminium Rail System Support Track (pack of 25).
Length: 2000mm
Pack Quantity: 25

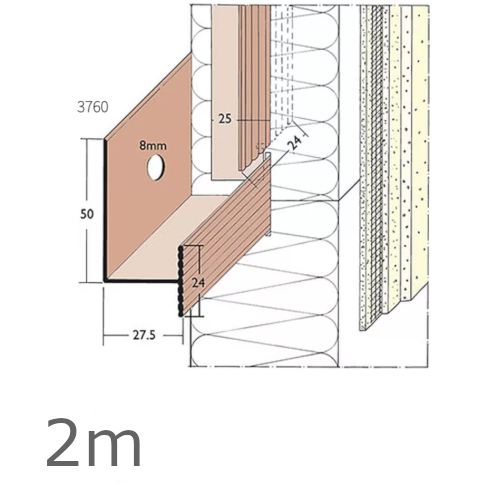

2m Aluminium Rail System Support Track profile to be used in an External Thermal Insulation Systems with EPS. Can be used with other stiff insulation boards.
INSTALLATION
- Fix the starter track of the rail system to the wall with dowel screws to the substrate.
- Dowels should be installed at a max. spacing of 30 cm.
- Apply an adhesive dab on the insulation board to cover at least 20% of the surface.
- The insulation board must have a groove for the rail track to go in (as shown in the above photo).
- Push the insulation board into the rail starter track and press it firmly to the wall.
- Align the boards horizontally and vertically.
- Push in the Wemico Aluminium Rail System Connector vertically.
- Push the intermediate rail system track into the installed boards horizontally.
- Fix the intermediate track with dowel screws.
- Continue to install insulation boards upwards.
Guide Price
Brand: Wemico
Model: 90903S
Delivery Time: 1 - 2 days
30mm box shaped Aluminium Vented base profile for external thermal insulation board, created to match the new regulations that demand different air flow rates within cavities of steel frame and timber frame structures. Connectors and render clips are also available to suit this product.Note:&nb..
Guide Price: £13.06
£15.67 inc VAT
Guide Price
Brand: Wemico
Model: WEC 732 - 110mm
Delivery Time: 1 - 2 days
The WEC 732 profile has an increased drip section to improve visual appearance and a large front face to help prevent water blowing up and soaking the insulation. The new design of drip also allows the end caps to be riveted into position. Manufactured from 1.2mm pre-coated white aluminium, in lengt..
Guide Price: £30.97
£37.16 inc VAT
Guide Price
Brand: Wemico
Model: WEC 771 - 70mm
Delivery Time: 1 - 2 days
70mm WEC 771 Verge Trim Profile is designed for use in situations where sealing the rear of the profile is possible. This profile also has an increased drip section to improve visual appearance and a large front face to help prevent the water blowing up and soaking the insulation.Manufactured i..
Guide Price: £21.44
£25.73 inc VAT
Guide Price
Brand: Wemico
Model: 2149
Delivery Time: 1 - 2 days
90mm box shaped Stainless Steel base profile for 30mm thermal insulation board - also available in Aluminium. Larger sizes can be made to order. Connectors and render clips are also available to suit this product.If you require less than pack quantity please submit quote request...
Guide Price: £256.27
£307.52 inc VAT
Brand: Wemico
Model: 91525
Delivery Time: 1 - 2 days
A box shaped base profile for 250mm thermal insulation board - also available in Stainless Steel. Larger sizes can be made to order. Connectors and render clips are also available to suit this product...
Brand: Wemico
Model: 95504
Delivery Time: 1 - 2 days
40mm Aluminium System Starter Track Profile for Curved Walls for 40mm insulation. Slit the back fixing leg and then bend profile around the curve of the wall. ..
£120.95
£145.14 inc VAT
