470mm Aluminium Rail System Connector (pack of 100).

470mm Aluminium Rail System Connector (pack of 100).
Guide Price
470mm Aluminium Rail System Connector (pack of 100).
Guide Price: £163.72 (£196.46 inc VAT)
  • Product Code: A1-2927
  • Delivery Time: 1 - 2 days
  • Brand: Wemico
  • Model: 9115
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Show other widths

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

470mm Aluminium Rail System Connector (pack of 100)

Length: 470mm

470mm Aluminium Rail System Connector profile to be used in an External Thermal Insulation Systems with 50mm EPS.


INSTALLATION

  • Fix the starter track of the rail system to the wall with dowel screws to the substrate.
  • Dowels should be installed at a max. spacing of 30 cm.
  • Apply an adhesive dab on the insulation board to cover at least 20% of the surface.

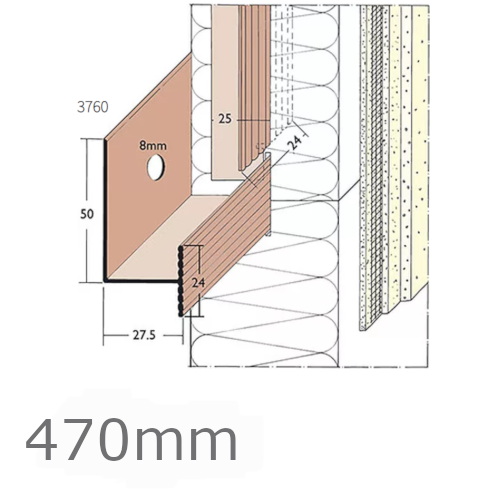

  • The insulation board must have a groove for the rail track to go in (as shown in the above photo).
  • Push the insulation board into the rail starter track and press it firmly to the wall.
  • Align the boards horizontally and vertically.
  • Push in the Wemico Aluminium Rail System Connector vertically.
  • Push the intermediate rail system track into the installed boards horizontally.
  • Fix the intermediate track with dowel screws.
  • Continue to install insulation boards upwards.
