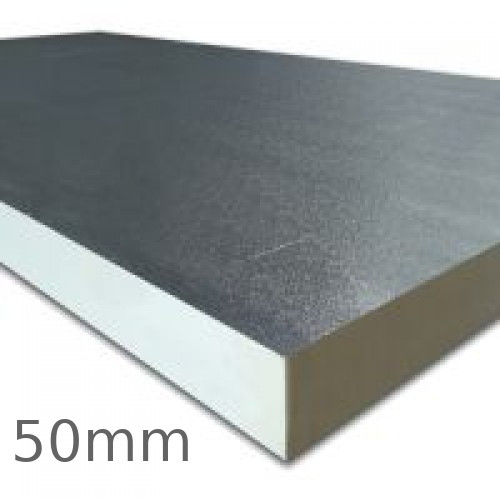

50mm Celotex FR5000 Fire Resistant PIR Insulation Board (pack of 8) - pallet of 6 packs

50mm Celotex FR5000 Fire Resistant PIR Insulation Board (pack of 8) - pallet of 6 packs
Guide Price
50mm Celotex FR5000 Fire Resistant PIR Insulation Board (pack of 8) - pallet of 6 packs
Guide Price: £2,382.75 (£2,859.30 inc VAT)
Price per m2: £17.24/m2 (£20.68 inc VAT)
  • Product Code: A1-932
  • Delivery Time: Out Of Stock
  • Brand: Celotex
  • (Tech. support: 01473820850)
  • Model: 1200x2400mm - 23.04m2
  • Weight: 333.60kg
Product discontinued. Click Get Best Price to request a quotation and we will recommended an equivalent product.
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

50mm Celotex FR5000 Fire Resistant PIR Insulation Board (pack of 8) - pallet of 6 packs

Thickness: 50mm
Width: 1200mm
Length: 2400mm
Pallet Coverage: 138.24m2
Weight/m2: 1.8kg
Weight: 333.6kg
Thermal Conductivity: 0.021W/mK
Compressive Strength: 120kPa
Surface Spread of Flame: Class 1

Celotex FR5050 is one of the available dimensions of the Celotex FR5000 PIR insulation boards made from polyisocyanurate rigid core and faced on both side with low emissivity aluminum foils for improved thermal performance. The product is applicable to different types of constructions including walls, floors and roofs, but is especially designed to suit pitched roof (both over and between the rafters) or other constructions where significant fire resistance is of importance due to the fact that is has A+ rating and a Class 0 fire performance throughout the entire construction. The boards have zero ODP and low GDP values, all making them highly environmentally friendly. It is advised to take into account the design and location of the roof, prior to determining required fixings. When adding the boards over the rafters, a breather membrane should be installed over insulation, while when installing the boards between the rafters, a vapour control barrier should be added to the underside of the rafters.

APPLICATION

Celotex FR5050 is applicable in walls, floors and pitched roofs applications.

Celotex FR5050 has the following characteristics:

  • Especially designed to meet the requirements of different constructions including, walls, floors and pitched roofs;
  • Applicable to both existing and new buildings;
  • Providing great thermal performance, with lambda values of only 0.021 W/mK, and better U values when compared to alternative PIR insulation boards;
  • Offering substantial fire resistance, since achieving an A+ rating and a Class 0 fire performance;
  • Vey environmentally friendly, due to the zero ODP and low GDP values;

CERTIFICATION

The product has the following certifications:

  • It is in accordance with BS 476;
  • It is manufactured in accordance with quality management systems ISO 9001 and environmental management system ISO 14001



Brand: Celotex Model: 1200 x 600 - 2.88m2
Delivery Time: 3 - 5 days
120mm Celotex TC3000 Flat Roof Board - Torch on (pack of 4)Size: 1200mm x 600mmArea per pack: 2.88m2Thermal conductivity: 0.025 W/MkR-Value: 4.80m2K/WCompressive strength: 150kPaWeight: 4.64kg/m2 Celotex TC3000 provides a quick and easy method of achieving effective thermal insul..
Brand: Celotex Model: 2400x1200mm - 2.88m2
Delivery Time: 1-3 working days
Celotex XR4150 is targeted at cut-to-fit applications between rafters or joists and enables users to achieve lower U-values with a single layer of insulation than has previously been possible. XR4150 is also appropriate for use in floors and walls. With low emissivity foil facings, XR4150 is ma..
£68.07
£81.68 inc VAT
Brand: Celotex Model: 1200x2400mm - 63.36m2
Delivery Time: 1 - 5 working days
Celotex GD5040 is a premium performance PIR insulation bonded to 12.5mm tapered edge plasterboard. Allows for the installation of both the insulation and plasterboard in one operation, thereby reducing installation time. Simplifies compliance to current building regulations for the upgrade of i..
Brand: Celotex Model: 1200x2400mm - 2.88m2
Delivery Time: 1 - 5 working days
57.5mm Celotex PL4045 is a high-performance thermal insulation board with PIR insulation bonded to 12.5mm tapered edge plasterboard. It is made from rigid polyisocyanurate (PIR) using blowing agents that have zero ozone depletion potential (zero ODP) and low global warming potential (GWP). Note: ..
Brand: Celotex Model: 1200x2400 - 34.56m2
Delivery Time: 3 - 5 days
100mm Celotex TA4000 PIR Insulation Board (pack of 12) Size: 1200mm x 2400mm Area per pack: 34.56m2 Thermal conductivity: 0.022 W/Mk R-Value: 4.50m2K/W Compressive strength: ≥150kPa Water vapour resistance: >150 MNs/g Weight: 3.41kg/m2   Celotex TA4000 pro..
Brand: Celotex Model: EL3000 1200x600 - 2.16m2
Delivery Time: 3 - 5 days
Celotex EL3000 provides a quick and easy method of achieving effective thermal insulation in flat roofing structures. With coated glass tissue facings, EL3000 is manufactured from rigid Polyisocyanurate (PIR) using a blend of blowing agents that have zero ozone depletion potential (zero ODP) and a l..
