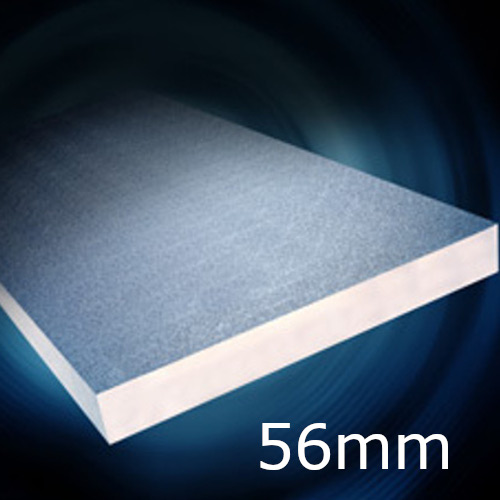

56mm Unilin XtroLiner XO/STP PIR Soffit Plus Board - (50mm PIR Board + 6mm Building Panel)

Length: 2400mm
Width: 1200mm
Thickness: 56mm
Board Coverage: 2.88m2
Thermal Conductivity: 0.021W/mK
R-Value: 2.35m2K/W
Compressive Strength: 120kPa
Fire Rating (Reaction to Fire): B(Class 0)

56mm Unilin Xtroliner XO/STP PIR Soffit Plus Board (50mm PIR + 6mm Building Panel) is a superior performance ceiling insulation board with enhanced fire performance, consisting of an Euroclass B s1 d0 PIR foam core with negligible smoke obscuration. Unilin Xtroliner XO/STP PIR core is faced with low emissivity aluminium facings,  bonded to an impact-resistant 6mm building panel.

APPLICATION
  • Designed to use for ceiling insulation

CHARACTERISTICS
  • Superior performance modified PIR foam,
  • Provides the most efficient U-values with minimal thickness,
  • Effective thermal and fire performance,
  • Low smoke obscuration,
  • Low risk fire rating - Euroclass B s1 d0,
  • For new build or refurbishment,
  • Rot proof and will remain effective for the life span of the building,
  • Can be readily cut using a sharp knife or fine toothed saw.
CERTIFICATION



    Brand: Unilin (prev. Xtratherm) Model: 1200x2400mm - 14.4m2
