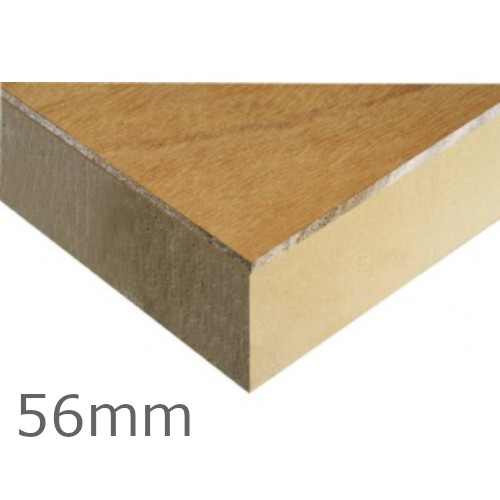

56mm Kingspan Thermaroof TR31 PIR bonded to Plywood (pack of 20) - 50mm PIR and 6mm Plywood Sheet
56mm Kingspan Thermaroof TR31 PIR bonded to Plywood (pack of 20) - 50mm PIR and 6mm Plywood Sheet
- Product Code: A1-386
- Delivery Time: 3 - 5 days
- Brand: Kingspan (Tech. support: 01544388601)
- Model: 1200x2400 - 57.60m2
- Weight: 251.80kg
Due to nationwide shortage of PIR insulation lead time may be longer for this product.
Product discontinued.
Click Get Best Price to request a quotation and we will recommended an equivalent product.
Our ratings on 08-11-2024:
4.8 out of 5
56mm Kingspan Thermaroof TR31 PIR bonded to Plywood (pack of 20) - 50mm PIR + 6mm Plywood Sheet
Width: 1200mm
Length: 2400mm
Coverage: 57.6m2
Weight/m2: 4.37kg
Density: 224.74kg/m3
Weight: 251.8kg
Thermal Conductivity: 0.022W/mK
Compressive Strength: 150kPa
56mm Kingspan Thermaroof TR31 is the flat roof insulation comprising a 50mm high performance rigid PIR thermoset insulation core faced with an FSC certified 6 mm nominal thickness WBP exterior grade plywood on its upper surface and a low emissivity composite foil facing on its lower surface. The product shall be manufactured: with a blowing agent that has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP).
APPLICATION

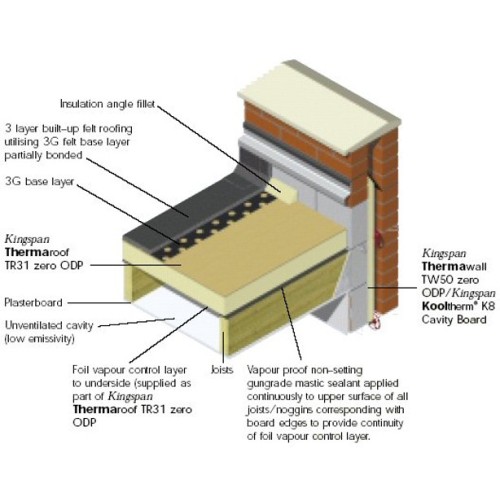

- Timber deck flat roofs (Over Joist Insulation Only)
- 16-20 Suretwist fixings are needed per 1200x2400mm board depending on joist spacing.
CHARACTERISTICS
- High performance rigid thermoset insulation thermal conductivity 0.022 W/m.K
- Insulation, vapour control layer and decking in one board
- Proven reputation as a quality composite roof deck
- Resistant to the passage of water vapour
- Easy to handle and install
- Ideal for new build and refurbishment
- Nondeleterious material
- Manufactured with a blowing agent that has zero ODP and low GDP
CERTIFICATION
Kingspan Thermaroof TR31 is manufactured to the highest standards in accordance with the requirements of:
- BS 48413 (Rigid polyisocyanurate (PIR) and polyurethane (PUR) products
- BS 48414 (Rigid polyisocyanurate (PIR) and polyurethane (PUR) products
- BS / I.S. EN ISO 9001: 2008 (Quality management systems. Requirements),
- BS / I.S. EN ISO 1400 : 2004 (Environmental Management Systems. Requirements)
- BS / I.S OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements)
