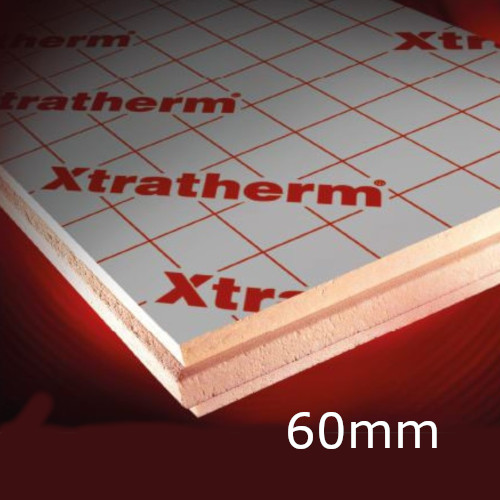

60mm Thin-R XT/CW Partial Fill Cavity Insulation Xtratherm (pack of 7)

60mm Thin-R XT/CW Partial Fill Cavity Insulation Xtratherm (pack of 7)
Guide Price
60mm Thin-R XT/CW Partial Fill Cavity Insulation Xtratherm (pack of 7)
Guide Price: £43.17 (£51.80 inc VAT)
Price per m2: £11.42/m2 (£13.70 inc VAT)
  • Product Code: A1-3161
  • Delivery Time: 2 - 4 days
  • Brand: Xtratherm
  • (Tech. support: 03712221055)
  • Model: 1200x450mm - 3.78m2
  • Weight: 6.80kg
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

To GET BEST PRICE for this product only fill below:

If you need price for more products use blue button "Add to Quote" and look for more products.

60mm Thin-R XT/CW Partial Fill Cavity Insulation Xtratherm (pack of 7)

Width: 450mm
Length: 1200mm
Pack Coverage: 3.78m2
Pack Quantity: 7
Density: 30kg/m3
Weight/m2: 1.8kg
Weight: 6.8kg
Thermal Conductivity: 0.022W/mK
R-Value: 2.73m2K/W
Compressive Strength: 120kPa

Xtratherm ThinR XT/CW Partial Fill Cavity Wall Insulation is the best solution when designers or regulations demand additional thermal insulation in external masonry walls, without a substantial increase in the width of the cavity. Xtratherm Thin-R boards achieve high standards of insulation whilst maintaining a residual cavity to prevent moisture penetration, without a substantial increase in the width of the cavity and of the overall wall thickness.

APPLICATION
  • partial fill cavity wall insulation

CHARACTERISTICS

  • The board comprises a CFC/HCFC free rigid Polyisocyanurate (PIR) core between low emissivity foil facings.
  • Square Edge
  • Clear cavity maintained
  • No exposure restrictions
  • Extra thermal performance Refer to NBS clause F30 155, F30 12

The Low emissivity foil facing on Xtratherm boards improve the thermal performance of the wall. The residual cavity is the most effective method of preventing rain penetrating a wall from the outside. The wall insulation shall be installed in accordance with instructions issued by Xtratherm.

Tongue & Groove board profile is also available upon request.

CERTIFICATION
  • This product is manufactured to EN ISO 9001:2000
  • Product certification: BBA certification no. 07/4407
  • Standard: BS EN 13165
