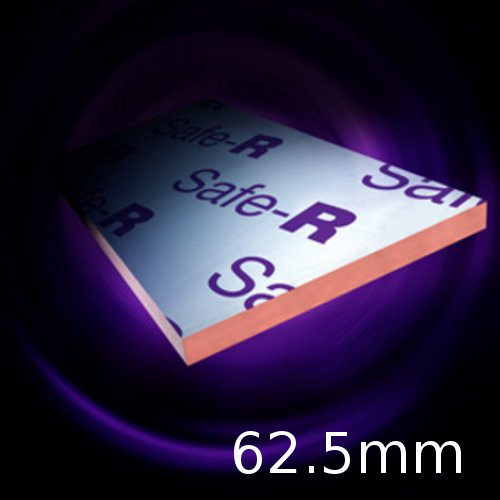

62.5mm Unilin Safe-R SR/TB (50mm Phenolic Core and 12.5mm Plasterboard) - Dot and Dab (pack of 6)
Guide Price
62.5mm Unilin Safe-R SR/TB (50mm Phenolic Core and 12.5mm Plasterboard) - Dot and Dab (pack of 6)
Guide Price: £440.13 (£528.16 inc VAT)
Price per m2: £25.47/m2 (£30.56 inc VAT)
- Product Code: A1-4878
- Delivery Time: 2 - 3 working days
- Brand: Unilin (prev. Xtratherm)
- Model: 2400x1200 - 17.28m2
Our ratings on 08-11-2024:
4.8 out of 5
62.5mm Unilin Safe-R SR/TB (50mm Phenolic Core + 12.5mm Plasterboard) - Dot & Dab (pack of 6)
Length: 2400mm
Width: 1200mm
Height: 62.5mm
Pack Quantity: 6
Board Coverage: 2.88m2
Pack Coverage: 17.28m2
Thermal Conductivity: 0.021W/mK
R-Value: 2.4m2K/W
Note: This composite plasterboard was formerly known as 62.5mm Xtratherm Safe-R Thermal Liner SR/TB
CHARACTERISTICS
- Superior performance phenolic foam,
- Effective thermal and fire performance,
- Can be readily cut using a sharp knife or fine toothed saw,
- Low smoke obscuration,
- Low risk fire rating - Class 0,
- HCFC/CFC Free,
- Zero ODP,
- Rot proof and will remain effective for the life span of the building,
- Reaction to fire: Euroclass B-s1, d0
APPLICATION
- Internal wall drylining for new build or refurbishment
INSTALLATION
- Align the SR/TB board squarely on wall.
- Allow a 15mm expansion joint at the top and bottom of the panel, and fill with foam filler.
- Mark the position of the panel on the wall. Apply adhesive dabs to the wall in accordance with BS8212:1986 & BS 800: Part 8: 1994.
- Vertical dabs @ 300mm centres 25mm in from edge. Dabs 50-75mm wide approx 25mm deep to allow for tamping. Total contact with boards area should be 20%.
- Lift the SR/TB board into position using wedges on the floor.
- Apply pressure to the board to level and embed in the adhesive.
- Insulation should be cut back to accommodate an adjoining panel at external corners.
- When the adhesive has dried, 3 fireproof mechanical fixings should be fixed through the centre of the board.
CERTIFICATION
Unilin_SR_TB_Datasheet.pdf
Brand: Unilin (prev. Xtratherm)
Model: 2400x1200mm - 2.88m2
