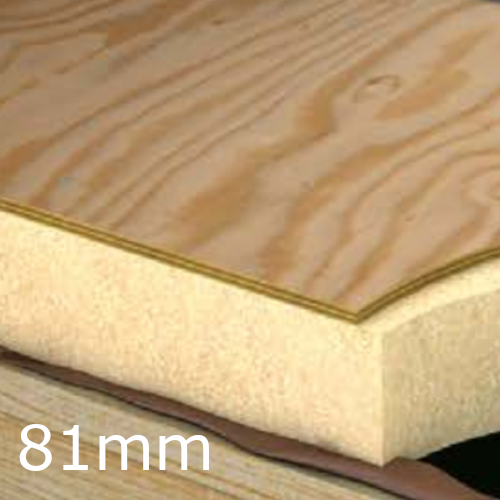

81mm Xtratherm FR/TP Thermal Ply Flat Roof Board - 75mm PIR and 6mm Plywood Board
81mm Xtratherm FR/TP Thermal Ply Flat Roof Board - 75mm PIR and 6mm Plywood Board
- Product Code: A1-4459
- Delivery Time: 1-3 working days
- Brand: Xtratherm (Tech. support: 03712221055)
- Model: 2400x1200 - 2.88m2
- Weight: 17.48kg
Our ratings on 08-11-2024:
4.8 out of 5
81mm Xtratherm FR/TP Thermal Ply Flat Roof Board - 75mm PIR + 6mm Plywood Board
Width: 1200mm
Length: 2400mm
Board Coverage: 2.88m2
Thermal Conductivity: 0.022W/mK
R-Value: 3.41m2K/W
Compressive Strength: 150kPa
Weight: 17.48kg
81mm Xtratherm FR/TP Ply is a composite insulated panel of 75m Xtratherm Polyisocyanurate core with a composite foil face, bonded to 6mm WBP grade plywood board. Xtratherm FR/TP Ply is designed to provide high levels of thermal insulation and decking in one operation for new and refurbishment flat roof applications. 16-20 Suretwist fixings are needed per 1200x2400mm board depending on rafter spacing. Fixing the FR/TP board onto a bed of mastic creates a continuous vapour control layer. Core density: 32kg/m3
APPLICATION
- Flat roof applications.
CHARACTERISTICS
- Faced to the underside by a gas-tight foil membrane,
- Creates a continuous vapour control layer,
- Suitable for use in damp environment,
- Low thermal conductivity,
- Durable and will perform for the service life of the building
- Lightweight, robust and easy to handle,
- Can be worked using a saw or sharp knife
CERTIFICATION
Manufactured to,- EN 13165
- BS EN ISO 9001 Quality Management System
- BS EN ISO 14001 Environmental Management System
