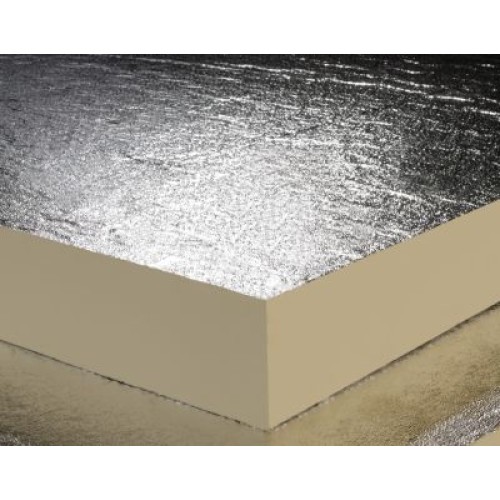

85mm Celotex CG5000 Partial Fill Cavity Wall Board pack of 7 - pallet of 16 packs

85mm Celotex CG5000 Partial Fill Cavity Wall Board pack of 7 - pallet of 16 packs
  • Product Code: A1-928
  • Delivery Time: 3 - 5 days
  • Due to nationwide shortage of PIR insulation lead time may be longer for this product.
  • Brand: Celotex
  • (Tech. support: 01473820850)
  • Model: 450x1200mm - 60.48m2
  • Weight: 129.29kg
Product discontinued. Click Get Best Price to request a quotation and we will recommended an equivalent product.
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

85mm Celotex CG5000 Partial Fill Cavity Wall Board pack of 7 - pallet of 16 packs

Thickness: 85mm
Width: 450mm
Length: 1200mm
Pallet Coverage: 60.48m2
Weight/m2: 2.96kg
Thermal Conductivity: 0.021W/mK
R-Value: 4m2K/W
Compressive Strength: 120kPa
Vapour resistivity: 150

Celotex CG5085 is especially designed for partial fill cavity wall insulation, offering great thermal performance due to substantial R and U values, with decreased board thickness and lower emissivity values due to the aluminum foil facings on both sides of the PIR core. This set of products presents and innovative solution in cavity wall insulation, offering considerable fire resistance, achieving an A+ rating and a Class 0 fire performance throughout the entire construction. The boards are made from resilient and durable polyisocyanurate treated with zero ODP and low GDP blowing agents, all making them highly environmentally friendly. It is advised not to install the boards at low temperatures of 4 C or lower. When adding the boards to the inner side of the wall, the wall ties must be able to hold the insulation in place and the boards secured with at least three ties.

APPLICATION

Partial fill cavity walls applications.

CHARACTERISTICS
  • Especially designed to meet the requirements of partial fill cavity walls applications,
  • Applicable to both existing and new buildings,
  • Great thermal performance, with lambda values of only 0.021 W/mK,
  • Offers substantial fire resistance,
  • Highly environmentally friendly,
  • Zero ODP and low GDP values.
CERTIFICATION
  • In accordance with BS 476;
  • BBA certified, number 94/3080;
  • Manufactured in accordance with quality management systems BS EN ISO 9001:2000.

Once purchased this product is non-returnable.

Brand: Celotex Model: 1200 x 600 - 3.6m2
Delivery Time: 3 - 5 days
100mm Celotex TC3000 Flat Roof Board - Torch on (pack of 5)Size: 1200mm x 600mmArea per pack: 3.6m2Thermal conductivity: 0.026 W/MkR-Value: 3.80m2K/WCompressive strength: 150kPaWeight: 4.00kg/m2 Celotex TC3000 provides a quick and easy method of achieving effective thermal insula..
75mm Celotex FR5000 Fire Resistant PIR Insulation Board (pack of 6) - pallet of 5 packs
Guide Price
Brand: Celotex Model: 1200x2400mm - 86.40m2
Delivery Time: Out Of Stock
Celotex FR5075 is one of the available dimensions of the Celotex FR5000 PIR insulation boards made from polyisocyanurate rigid core and faced on both side with low emissivity aluminum foils for improved thermal performance. The product is applicable to different types of constructions incl..
Guide Price: £2,073.97
£2,488.76 inc VAT
Brand: Celotex Model: 2400x1200mm - 2.88m2
Delivery Time: 1-3 working days
Celotex XR4130 is targeted at cut-to-fit applications between rafters or joists and enables users to achieve lower U-values with a single layer of insulation than has previously been possible. XR4130 is also appropriate for use in floors and walls. With low emissivity foil facings, XR4130 is ma..
£56.30
£67.56 inc VAT
100mm Celotex GA4000 PIR Insulation Board - GA4100
Guide Price
Brand: Celotex Model: 2400x1200mm - 2.88m2
Delivery Time: 1-3 working days
100mm Celotex GA4100 is a multi-purpose insulation board that provides a solution to overcome localized thermal bridges. Featuring a low emissivity foil facings, this board has been manufactured from tough polyisocyanurate (PIR) using a perfect mix of certain blowing agents which have zero ozone dep..
Guide Price: £34.97
£41.96 inc VAT
Brand: Celotex Model: FF4000 1200x2400 - 69.12m2
Delivery Time: 3 - 5 days
100mm Celotex FF4000 Underfloor Heating Board (pack of 12) Size: 1200mm x 2400mm Area per pack: 34.56m2 Thermal conductivity: 0.022 W/Mk R-Value: 4.50m2K/W Compressive strength: ≥150kPa Water vapour resistance: >150 MNs/g Weight: 3.41kg/m2   ..
Brand: Celotex Model: 1200 x 600 - 2.16m2
Delivery Time: 3 - 5 days
150mm Celotex TC3000 Flat Roof Board - Torch on (pack of 3)Size: 1200mm x 600mmArea per pack: 2.16m2Thermal conductivity: 0.025 W/MkR-Value: 6.00m2K/WCompressive strength: 150kPaWeight: 5.60kg/m2 Celotex TC3000 provides a quick and easy method of achieving effective thermal insul..
