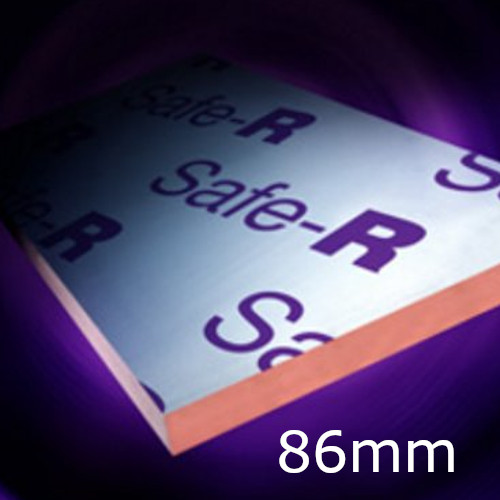

86mm Unilin Safe-R SR/STP Phenolic Soffit Plus Board - (80mm Phenolic and 6mm Building Panel)
86mm Unilin Safe-R SR/STP Phenolic Soffit Plus Board - (80mm Phenolic and 6mm Building Panel)
- Product Code: A1-4992
- Delivery Time: 2 - 3 working days
- Brand: Unilin (prev. Xtratherm)
- Model: 2400x1200mm - 2.88m2
Our ratings on 08-11-2024:
4.8 out of 5
86mm Unilin Safe-R SR/STP Phenolic Soffit Plus Board - (80mm Phenolic + 6mm Building Panel)
Length: 2400mm
Width: 1200mm
Thickness: 86mm
Board Coverage: 2.88m2
Thermal Conductivity: 0.021W/mK
R-Value: 3.8m2K/W
Compressive Strength: 120kPa
Fire Rating (Reaction to Fire): B(Class 0)
86mm Unilin Safe-R SR/STP Phenolic Soffit Plus Board (80mm Phenolic + 6mm Building Panel) is a superior performance ceiling insulation board with enhanced fire performance, consisting of an Euroclass B s1 d0 phenolic foam core with negligible smoke obscuration. Unilin Safe-R SR/STP phenolic core is faced with low emissivity aluminium facings both sides, and has a thermal conductivity as low as 0.020W/mK.
Note: this product was formerly known as 86mm Xtratherm Safe-R SR/STP Phenolic Soffit Plus Board
APPLICATION
- Designed to use for ceiling insulation
CHARACTERISTICS
- Superior performance phenolic foam,
- Provides the most efficient U-values with minimal thickness,
- Effective thermal and fire performance,
- Low smoke obscuration,
- Low risk fire rating - Euroclass B s1 d0,
- For new build or refurbishment,
- Rot proof and will remain effective for the life span of the building,
- Can be readily cut using a sharp knife or fine toothed saw.
CERTIFICATION
