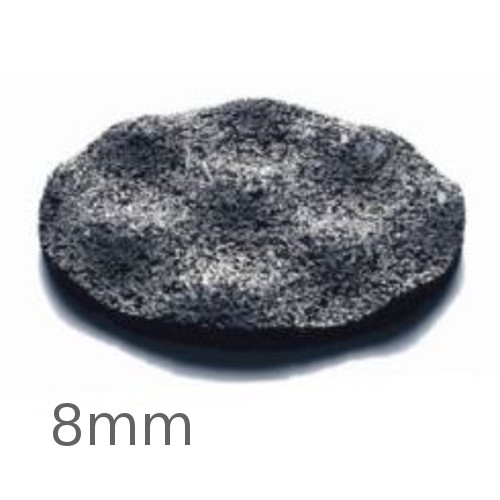

8mm Regupol E48 Acoustic Flooring Material for Under Screed

Regupol E48 is a high performance recycled tyre crumb acoustic flooring material used for under screed. It is designed to isolate screeds from the main structure of the building reducing the impact energy generated by general footfall. Regupol E48 acoustic flooring material is used under all types of floor screeds in most new build constructions.

• High quality and exact material thickness guaranteed

• Designed to reduce impact noise from high loads having a maximum load bearing capacity of 30kN/m2 (3000kg/m2)

• Excellent impact and airborne performance

• Offers long-term performance without collapse or bottoming out under high point loads
• Minimal creep even under high loads
• Resistant to ageing and deformation
• Quick and easy to install
• No need for separate perimeter strips
• Minimises construction heights
• High quality and exact material thickness guaranteed
• Suitable for use with under floor heating
• Protects expansion joints
• Sustainable and completely recyclable
• Mildew and moisture proof
• Zero global warming potential (GWP)
• Zero ozone depletion potential (ODP)

• Apartments,
• Schools,
• Hospitals,
• Hotels,
• Libraries
• Supermarkets


• It is important that the base floor is clean (free from loose dirt and concrete dust). Flat (within National Building Standards +5mm over a 5m span) and where possible, dry.

• Unwind each roll where it is to be installed and leave it for a few hours before measuring or cutting to length. When the product is rolled up it stretches slightly.

• Lay dimple side down.

• Use a sharp craft knife and straight edge for cutting to size.

• Position the Regupol Corner Pieces into each of the internal corners, with the bottom folds laid flat on the sub-floor for stability purposes.

• Allow for the 100mm upturn at each end. Cut a 230mm x 230mm square piece from the roll in the corner that will overlap the corner piece.

• Move the roll to overlap the Corner Piece and turn it up each wall by 100mm.

• Ensure that all overlapping edges are taped with Regupol tape.

• Overlap all joints (both along and across the roll) by at least 50mm and tape all joints using Regupol tape.

• Turn up edges at walls to ensure the screed will not touch the walls and is of sufficient length to lap under the wall linings and skirtings.

• Lay a waterproof membrane, minimum of 0.2mm thick over the entire area. This must be overlapped by at least 100mm and must also cover the upturned edges.

• All joints must be taped to prevent movement during the casting process.


Regupol E48 acoustic flooring material has been independently tested by UKAS and ANC Approved bodies in both the laboratory and on-site respectively to show compliance with the new building regulations in accordance with Approved Document E 2003. Approved by NHBC for ADE 2003 compliance.
