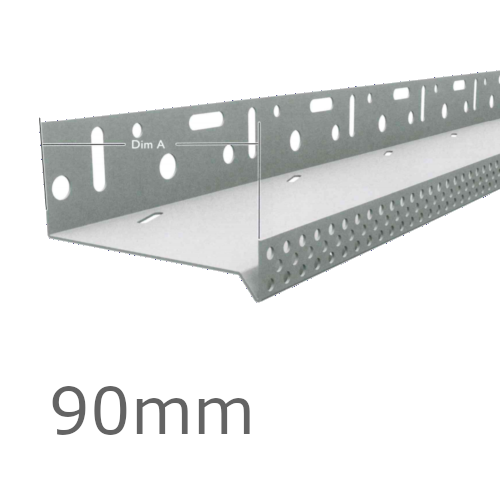

90mm Aluminium Vented Base Track - for steel construction.

90mm Aluminium Vented Base Track - for steel construction.
Guide Price
90mm Aluminium Vented Base Track - for steel construction.
Guide Price: £15.19 (£18.23 inc VAT)
20 or more £16.40 (£19.68 inc VAT)
30 or more £15.80 (£18.96 inc VAT)
40 or more £15.19 (£18.23 inc VAT)
  • Product Code: A1-2902
  • Delivery Time: 1 - 2 days
  • Brand: Wemico
  • Model: 90909S
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Show other widths

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

980mm Aluminium Vented Base Track - for steel construction.

Thickness: 0.8mm
Width: 90mm
Length: 2500mm
dim 'A': 93mm

90mm box shaped Aluminium Vented base profile for external thermal insulation board, created to match the new regulations that demand different air flow rates within cavities of steel frame and timber frame structures. Connectors and render clips are also available to suit this product.



Note: Please choose for timber frame or steel frame structures.

Ventilation rate per meter length for timber frame is 735.07mm2.

Ventilation rate per meter length for steel frame is 143.14mm2.



50mm WEC End Cap for Verge Trim Profiles
Guide Price
Brand: Wemico Model: Verge Trim End Cap - 50mm
Delivery Time: 1 - 2 days
These end caps can be used with; WEC 771, WEC 781, WEC 791 AND IGT range of profiles. Manufactured in 1.2mm pre-coated white aluminium.                                            ..
Guide Price: £5.72
£6.86 inc VAT
50mm Aluminium Brickslip Base Profile - 2.5m length (pack of 10)
Guide Price
Brand: Wemico Model: BrickSlip50
Delivery Time: 1 - 2 days
50mm Wemico aluminium brickslip profile for use in Insulation systems finished with a brick slip detail. These profiles can be powder coated to any standard RAL colour...
Guide Price: £158.42
£190.10 inc VAT
70mm WEC 771 Verge Trim Profile - 2.5m length
Guide Price
Brand: Wemico Model: WEC 771 - 70mm
Delivery Time: 1 - 2 days
70mm WEC 771 Verge Trim Profile is designed for use in situations where sealing the rear of the profile is possible. This profile also has an increased drip section to improve visual appearance and a large front face to help prevent the water blowing up and soaking the insulation.Manufactured i..
Guide Price: £21.44
£25.73 inc VAT
120mm WEC 771 Verge Trim Profile - 2.5m length
Guide Price
Brand: Wemico Model: WEC 771
Delivery Time: 1 - 2 days
120mm WEC 771 Verge Trim Profile is designed for use in situations where sealing the rear of the profile is possible. This profile also has an increased drip section to improve visual appearance and a large front face to help prevent the water blowing up and soaking the insulation.Manufactured ..
Guide Price: £24.82
£29.78 inc VAT
75mm Undersill Flashing and Window Sill Extensions (with full end caps-pair) - 2.5m Length. 75mm Undersill Flashing and Window Sill Extensions (with full end caps-pair) - 2.5m Length.
Guide Price
Brand: Wemico Model: WEC731/75
Delivery Time: 1 - 2 days
75mm Undersill Flashing and Window Sill Extension is suitable for most conditions requiring the weathering of External Wall Insulation Systems and Rendering. Aluminium White Coated with peel-off low tack film to protect the section during transportation and fixing on-site. Jointing pieces to su..
Guide Price: £27.60
£33.12 inc VAT
230mm Aluminium Brickslip Base Profile - 2.5m length
Guide Price
Brand: Wemico Model: BrickSlip230
Delivery Time: 1 - 2 days
230mm Wemico aluminium brickslip profile for use in Insulation systems finished with a brick slip detail. These profiles can be powder coated to any standard RAL colour...
Guide Price: £36.71
£44.05 inc VAT
