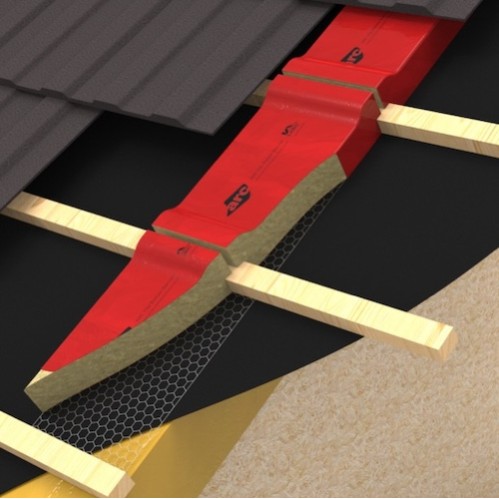

ARC Wired Tile Batten Barrier - Fire Barrier Between Roof Covering And Underside Of Tiles - Pack of 5

ARC Wired Tile Batten Barrier is a non-combustible wire reinforced rockfibre mineral wool fire barrier that stops fire between roof covering and underside of tiles. It is used as a fire, thermal and acoustic break at the party wall between the roof tiles and roof membrane. In conjunction with the ARC Party Wall System would create a complete fire break at the separating wall between two dwellings. Correct installation will achieve compliance with NHBC Standards 7.2.16.

• Easy to install,
• Create a complete party wall fire stopping solution,
• Provides fire stopping between roof tiles and roof membrane,
• Complies with NHBC 2017 7.2.16.


• Position the ARC Wired Tile Batten Barrier at the party wall line above the roof covering and before the tile battens are fitted.
• Use a knife to cut through the insulation of the ARC Wired Tile Batten Barrier in line with the leading (top) edge of the tile batten.
• Do not cut through the wire mesh.
• Care must be taken to not damage the roof covering underneath.
• Work the tile batten into the cut in the insulation.
• The lower edge of the tile batten should be covered by insulation.
• This ensures that the gap between the batten and underside of the roof tile, once fitted, are filled.
• Check the insulation has recovered to a height that will fill to the back of the roof tile when fitted.
• Work the material so that no gaps will remain once the tiles have been fitted.

• ARC Wired Tile Batten Barrier is manufactured using rockfibre mineral wool which achieves a fire classification of Euroclass A1 as defined in BS EN 13501-1, and conforms to BS EN 13162 and EN16001 Energy Management Systems.
