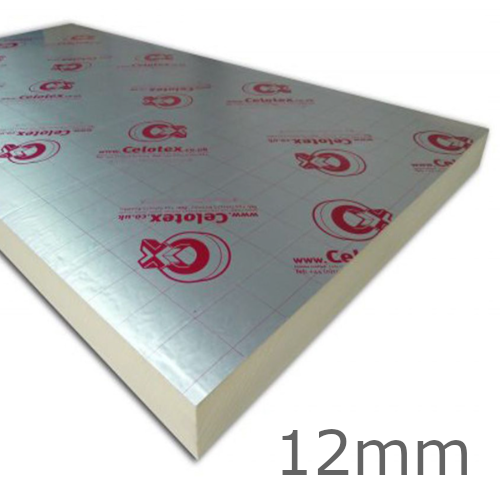

12mm Celotex TB4000 PIR Insulation Board - TB4012

12mm Celotex TB4000 PIR Insulation Board - TB4012
  • Product Code: A1-110
  • Delivery Time: 1-3 working days
  • Brand: Celotex
  • (Tech. support: 01473820850)
  • Model: 1200x2400mm - 2.88m2
  • Weight: 1.44kg
Product discontinued. Click Get Best Price to request a quotation and we will recommended an equivalent product.
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

12mm Celotex TB4000 PIR Insulation Board - TB4012

Width: 1200mm
Length: 2400mm
Coverage: 2.88m2
Density: 42kg/m3
Weight/m2: 0.5kg
Weight: 1.44kg
Compressive Strength: 120kPa
Thermal Conductivity: 0.023W/mK
R-Value: 0.5m2K/W

Celotex TB4012 is targeted at cut-to-fit applications between rafters or joists and enables users to achieve lower U-values with a single layer of insulation than has previously been possible. TB4012 is also appropriate for use in floors and walls. With low emissivity foil facings, TB4012 is manufactured from rigid polyisocyanurate (PIR) using a blend of blowing agents that have zero ozone depletion potential (zero ODP) and low global warming potential (GWP).

Note:

  • Would also be known as TB3012 from January 2018.
  • Discontinued from Monday 20th July 2020 - guide price only

APPLICATIONS

  • Pitched Roofs
  • Flat Roofs
  • Solid Masonry Walls
  • Timber Framed & Steel Framed Systems
  • Floors
CHARACTERISTICS
  • Specifically designed to eliminate thermal bridges
  • The thinnest PIR insulation
  • Standard board size of 1200mm x 2400mm
  • Easy to cut and shape
  • Low emissivity foil facings giving improved thermal insulation
  • High performance within cavity air spaces
  • Long-term energy savings for buildings
CERTIFICATION
  • CE marking compliance to BS EN 13165
  • Manufactured in accordance with quality management system ISO 9001 and environmental management system ISO 14001
  • Achieves an A+ rating when compared to the BRE Green Guide 2008
