152mm Ancon Staifix Timber Frame Tie for 75mm Cavity - Type 6 Tie - pack of 250

152mm Ancon Staifix Timber Frame Tie for 75mm Cavity - Type 6 Tie - pack of 250
152mm Ancon Staifix Timber Frame Tie for 75mm Cavity - Type 6 Tie - pack of 250
152mm Ancon Staifix Timber Frame Tie for 75mm Cavity - Type 6 Tie - pack of 250
152mm Ancon Staifix Timber Frame Tie for 75mm Cavity - Type 6 Tie - pack of 250
152mm Ancon Staifix Timber Frame Tie for 75mm Cavity - Type 6 Tie - pack of 250
Price: £87.63 (£105.16 inc VAT)
  • Product Code: A1-5361
  • Delivery Time: 1-3 working days
  • Brand: Ancon
  • (Tech. support: : +44(0)1142381238)
  • Model: 152mm
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
This product has a minimum quantity of 2. If you need less - request a quote.
Show other lengths

152mm Ancon Staifix Timber Frame Tie for 75mm Cavity - Type 6 Tie - pack of 250

Length: 152mm
Pack Quantity: 250
Cavity width: 75mm

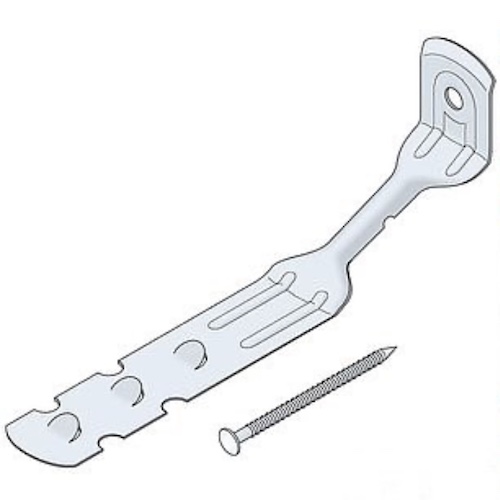

152mm Ancon Staifix Timber Frame Tie is a cranked tie used to fix brickwork or blockwork to timber-framed structures up to 4 storeys in height. It is a type 6 tie that has been independently tested for use with 15mm OSB SIPS (structural insulated panel) panel. It is supplied with an annular ring shank nail. If needed, this annular ring shank nail can be replaced with a 4 x 30mm stainless steel screw. The tie is cranked to simplify correct installation and to prevent moisture from crossing the cavity.

CHARACTERISTICS
  • A tie for blockwork to to timber-framed structures up to 4 storeys in height,
  • Cranked to prevent moisture from crossing the cavity.

Brand: Ancon Model: 180mm - bag of 100
Delivery Time: 2 - 5 working days
Ancon HTSS-180-2PT-W Screws are used to fix an outer leaf of brickwork through any kind of insulation to a steel frame structure. These screws feature a shaped drill tip of hardened steel that allows installation without pre-drilling. Ancon HTSS-180-2PT-W high thread screws accommodat..
Brand: Ancon Model: 200mm
Delivery Time: 3 - 5 days
200mm AC 31 Wall Tie is a masonry remedial wall tie for tying together two leaves of solid walls, where bricks are removed then replaced in the outer leaf. The wavy end is resin-bonded into the inner leaf in a 10mm Ø hole. The triangular end sits in the bed joint. Ancon AC 31 wall tie is s..
425mm Ancon Teplo-BF-2 Wall Tie - General Purpose Type 2
Guide Price
Brand: Ancon Model: 425mm
Delivery Time: 3 - 5 days
425mm Ancon Teplo-BF-2 Wall Tie is a smart black general purpose composite wall tie manufactured from pultruded basalt fibres with a thermal conductivity of 0.7 W/mK, which helps to prevent heat escape from the building. The Teplo-BF-2 has specialised moulded safety ends which offer improved bu..
Guide Price: £3.85
£4.62 inc VAT
Brand: Ancon Model: Teplo-BF-CT-25/225
Delivery Time: 2 - 5 working days
Ancon Teplo-BF-CT-25/225 Channel Wall Tie made of basalt fibres set in a resin matrix to provide a low thermal conductivity wall tie for 160-184mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. The thermal efficiency these ties are excluded from U-value calculations t..
Brand: Ancon Model: 250mm
Delivery Time: 2 - 3 working days
250mm Ancon Staifix RT2 Wall Tie is a low conductivity stainless steel general purpose wall tie for use in domestic houses and small commercial buildings up to 15 metres in height. Wall ties should be pressed down in fresh mortar. They should be surrounded by mortar and they should be inst..
£8.24
£9.89 inc VAT
525mm Ancon Teplo-BF-3 Wall Tie - Basic Wall Tie Type 3
Guide Price
Brand: Ancon Model: 525mm
Delivery Time: 3 - 5 days
525mm Ancon Teplo-BF-3 Wall Tie is a smart black general purpose composite type 3 wall tie manufactured from pultruded basalt fibres with a thermal conductivity of 0.7 W/mK, which helps to prevent heat escape from the building. The Teplo-BF-3 has specialised moulded safety ends which offer impr..
Guide Price: £4.65
£5.58 inc VAT
