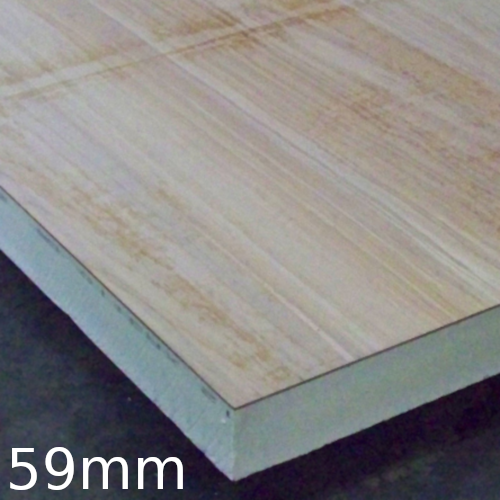

59mm Plydeck Xtratherm (PIR with OSB Board) - 50mm PIR and 9mm OSB Board

59mm Plydeck Xtratherm (PIR with OSB Board) - 50mm PIR and 9mm OSB Board
Guide Price
59mm Plydeck Xtratherm (PIR with OSB Board) - 50mm PIR and 9mm OSB Board
Guide Price: £41.38 (£49.66 inc VAT)
Price per m2: £14.37/m2 (£17.24 inc VAT)
  • Product Code: A1-179
  • Delivery Time: 1-3 working days
  • Due to nationwide shortage of PIR insulation lead time may be longer for this product.
  • Brand: Xtratherm
  • (Tech. support: 03712221055)
  • Model: 2400x1200 - 2.88m2
  • Weight: 24.60kg
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

59mm Plydeck Xtratherm (PIR with OSB Board) - 50mm PIR + 9mm OSB Board

Width: 1200mm
Length: 2400mm
Density: 417kg/m3
Weight/m2: 8.54kg
Weight: 24.6kg
Thermal Conductivity: 0.022W/mK
R-Value: 2.55m2K/W
Compressive Strength: 150kPa

Xtratherm Plydeck is a composite insulated panel consisting of a 50mm Xtratherm Polyisocyanurate core with a composite foil face, bonded to 9mm OSB board. This innovative product provides both thermal insulation and decking in one application.

Application

Xtratherm Plydeck is designed to offer high levels of thermal insulation and decking in a single operation for both new and refurbishment flat roof applications. Approximately 16-20 Suretwist fixings are required per 1200x2400mm board, depending on rafter spacing.

Characteristics

  • Xtratherm Plydeck features a gas-tight foil membrane on its underside
  • Bedding the panel onto a layer of mastic creates a continuous vapour control layer
  • The insulation's resistance to water absorption makes it suitable for damp environments
  • The low thermal conductivity of the insulation allows for minimal board thickness, while the composite board enables rapid coverage and straightforward installation
  • A second layer of Xtratherm can be added between joists to enhance thermal performance or reduce material thickness over joists
  • Xtratherm Plydeck is durable and designed to perform throughout the building's service life
  • Lightweight, robust, and easy to handle, Xtratherm Plydeck can be cut using a saw or sharp knife

Certification

  • Manufactured under an ISO9001 assured quality system
  • Manufactured using Pentane as the blowing agent, which is CFC/HCFC-free with zero ozone depletion potential and a Global Warming Potential less than 0.01
