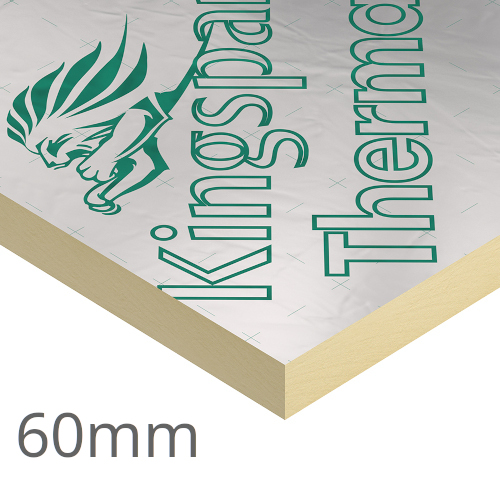

60mm Thermafloor TF70 PIR Insulation Board Kingspan

60mm Thermafloor TF70 PIR Insulation Board Kingspan
Price: £60.07 (£72.08 inc VAT)
Price per m2: £20.86/m2 (£25.03 inc VAT)
5 or more £59.10 (£70.92 inc VAT)
10 or more £58.11 (£69.73 inc VAT)
20 or more £56.61 (£67.93 inc VAT)
  • Product Code: A1-499
  • Delivery Time: 1 - 5 working days
  • Due to nationwide shortage of PIR insulation lead time may be longer for this product.
  • Brand: Kingspan
  • (Tech. support: 01544388601)
  • Model: TF70 - 1200x2400
  • Weight: 5.53kg
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

60mm Thermafloor TF70 PIR Insulation Board Kingspan

Width: 1200mm
Length: 2400mm
Coverage: 2.88m2
Density: 32kg/m3
Weight/m2: 1.92kg
Weight: 5.53kg
Thermal Conductivity: 0.022W/mK
R-Value: 2.73m2K/W
Compressive Strength: 140kPa
Fire Rating (Reaction to Fire): F

60mm Kingspan TF70 comprises a high performance rigid thermoset insulation core faced on both sides with a low emissivity composite foil facing.

CHARACTERISTICS
  • High performance rigid thermoset insulation
  • No requirements for a vapour control layer
  • Quick response floor heating - prevents heat loss through 'heat sump'
  • Minimises the cost of related items - soil removal, DPM's service connections
  • Resistant to passage of water vapour
  • Easy to handle and install
  • Non-deleterious material
APPLICATIONS
  • Solid Concrete Ground Based Floor
  • Beam and Dense Block Floor
  • Suspended Timber Ground Floor
  • Timber Floor on Battens
CERTIFFICATION
Kingspan TF70 is manufactured to the highest standards under a management system under a quality control system approved to:
  • BS / I.S. EN ISO 9001: 2015 (Quality Management Systems. Requirements)
  • BS / I.S. EN ISO 14001: 2015 (Environmental Management Systems. Requirements)
  • BS / I.S OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements)

Kingspan TF70 is manufactured to the highest standards under a quality control system in accordance with draft BS 4841-6
