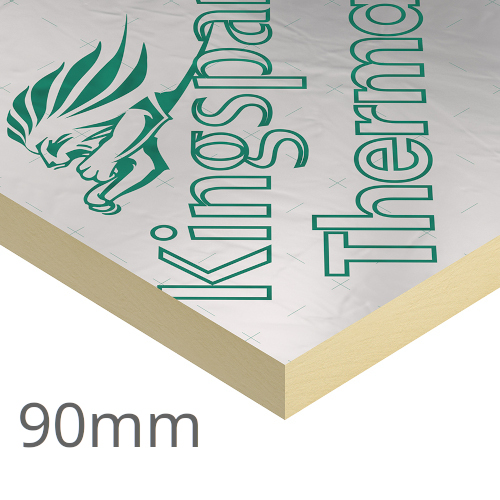

90mm Thermafloor TF70 PIR Insulation Board Kingspan
90mm Thermafloor TF70 PIR Insulation Board Kingspan
Price: £124.48 (£149.38 inc VAT)
Price per m2: £43.22/m2 (£51.87 inc VAT)
5 or more £122.47 (£146.96 inc VAT)
10 or more £120.44 (£144.53 inc VAT)
20 or more £117.48 (£140.98 inc VAT)
- Product Code: A1-503
- Delivery Time: 1 - 5 working days
- Brand: Kingspan (Tech. support: 01544388601)
- Model: TF70 - 1200x2400
- Weight: 8.29kg
Due to nationwide shortage of PIR insulation lead time may be longer for this product.
Our ratings on 08-11-2024:
4.8 out of 5
90mm Thermafloor TF70 PIR Insulation Board Kingspan
Width: 1200mm
Length: 2400mm
Coverage: 2.88m2
Density: 32kg/m3
Weight/m2: 2.88kg
Weight: 8.29kg
Thermal Conductivity: 0.022W/mK
R-Value: 4.09m2K/W
Compressive Strength: 140kPa
Fire Rating (Reaction to Fire): F
90mm Kingspan TF70 comprises a high performance rigid thermoset insulation core faced on both sides with a low emissivity composite foil facing.
CHARACTERISTICS
- High performance rigid thermoset insulation
- No requirements for a vapour control layer
- Quick response floor heating - prevents heat loss through 'heat sump'
- Minimises the cost of related items - soil removal, DPM's service connections
- Resistant to passage of water vapour
- Easy to handle and install
- Non-deleterious material
APPLICATIONS
- Solid Concrete Ground Based Floor
- Beam and Dense Block Floor
- Suspended Timber Ground Floor
- Timber Floor on Battens
CERTIFFICATION
Kingspan TF70 is manufactured to the highest standards under a management system under a quality control system approved to:
- BS / I.S. EN ISO 9001: 2015 (Quality Management Systems. Requirements)
- BS / I.S. EN ISO 14001: 2015 (Environmental Management Systems. Requirements)
- BS / I.S OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements)
Kingspan TF70 is manufactured to the highest standards under a quality control system in accordance with draft BS 4841-6
