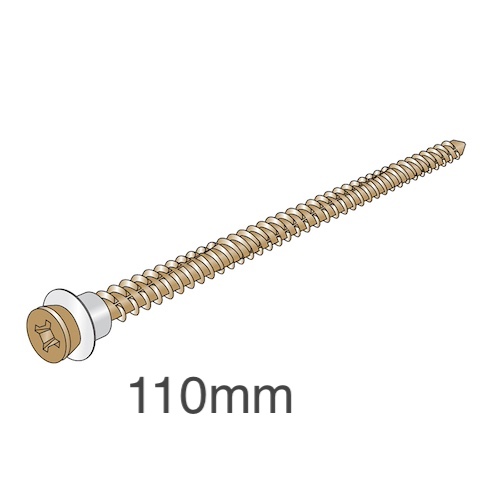

Ancon CFS115 Concrete Fixing Screws - Fixings for Ancon 25/14 Restraint System to Concrete Wall - bag of 100
Ancon CFS115 Concrete Fixing Screws - Fixings for Ancon 25/14 Restraint System to Concrete Wall - bag of 100
- Product Code: A1-5560
- Delivery Time: 2 - 5 working days
- Brand: Ancon (Tech. support: : +44(0)1142381238)
- Model: CFS115
Our ratings on 08-11-2024:
4.8 out of 5
Ancon CFS115 Concrete Fixing Screws - Fixings for Ancon 25/14 Restraint System to Concrete Wall - bag of 100
Length: 115mm
Pack Quantity: 100
Insulation Thickness: 46-55mmmm
Ancon CFS115 Concrete Fixing Screws is used to fix an outer leaf of brickwork through any kind of insulation to a concrete wall. These zinc plated carbon steel screws should be used in combination with Ancon Compression Sleeves in the same length as the insulation thickness being used. Using the channel holes as a guide, mark the precise position of the pilot holes. Remove channel and push an Ancon Compression Sleeve through the insulation at each fixing location. Screw in the Ancon 25/14 channel into place. Insulation thickness: 46-55mm.
BENEFITS
- Quick installation,
- Avoids compression of insulation,
- Improved thermal bridging.
Note: Channels and Ties are bought separately
Ancon 25-14 Restraint System.pdf
Guide Price
Brand: Ancon
Model: 315mm - 7mm
Delivery Time: 3 - 5 days
315mm Ancon Teplo-L-Tie is an ultra-low thermal conductivity wall tie manufactured from basalt fibres set in a resin matrix. It minimises heat loss across an insulated cavity, improving the energy efficiency of a masonry cavity wall. It has stainless steel upstand with a 7mm fixing hole for a second..
Guide Price: £3.88
£4.66 inc VAT
Guide Price
Brand: Ancon
Model: 325mm
Delivery Time: 3 - 5 days
325mm Ancon Teplo-BF-2 Wall Tie is a smart black general purpose composite wall tie manufactured from pultruded basalt fibres with a thermal conductivity of 0.7 W/mK, which helps to prevent heat escape from the building. The Teplo-BF-2 has specialised moulded safety ends which offer improved bu..
Guide Price: £2.90
£3.48 inc VAT
Brand: Ancon
Model: CFS120
Delivery Time: 2 - 5 working days
Ancon CFS120 Concrete Fixing Screws is used to fix an outer leaf of brickwork through any kind of insulation to a concrete wall. These zinc plated carbon steel screws should be used in combination with Ancon Compression Sleeves in the same length as the insulation thickness being used..
Brand: Ancon
Model: 405mm - BFL-7
Delivery Time: 1-3 working days
405mm Ancon Teplo-BFL-7 Wall Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure. This ultra-low thermal conductivity wall tie can be fixed to concrete, masonry, steel and timber substrates. Ancon Teplo-BFL-5 Wall Tie has a..
Brand: Ancon
Model: 515mm
Delivery Time: 2 - 3 working days
515mm Ancon Teplo-R Wall Tie is a remedial wall tie is an ultra-low thermal conductivity wall tie manufactured from basalt fibres set in a resin matrix. It minimises heat loss across an insulated cavity, improving the energy efficiency of a masonry cavity wall. It is a plain-ended basalt fibre wall ..
Brand: Ancon
Model: Teplo-BF-CT-25/275
Delivery Time: 2 - 5 working days
Ancon Teplo-BF-CT-25/275 Channel Wall Tie made of basalt fibres set in a resin matrix to provide a low thermal conductivity wall tie for 210-234mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. The thermal efficiency these ties are excluded from U-value calculations t..
