Ancon CFS130 Concrete Fixing Screws - Fixings for Ancon 25/14 Restraint System to Concrete Wall - bag of 100
Ancon CFS130 Concrete Fixing Screws - Fixings for Ancon 25/14 Restraint System to Concrete Wall - bag of 100
- Product Code: A1-5562
- Delivery Time: 2 - 5 working days
- Brand: Ancon (Tech. support: : +44(0)1142381238)
- Model: CFS130
Our ratings on 08-11-2024:
4.8 out of 5
Ancon CFS130 Concrete Fixing Screws - Fixings for Ancon 25/14 Restraint System to Concrete Wall - bag of 100
Length: 130mm
Pack Quantity: 100
Insulation Thickness: 66-75mmmm

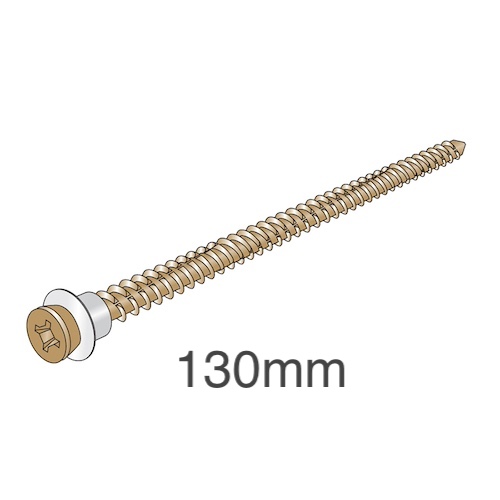

Ancon CFS130 Concrete Fixing Screws is used to fix an outer leaf of brickwork through any kind of insulation to a concrete wall. These zinc plated carbon steel screws should be used in combination with Ancon Compression Sleeves in the same length as the insulation thickness being used. Using the channel holes as a guide, mark the precise position of the pilot holes. Remove channel and push an Ancon Compression Sleeve through the insulation at each fixing location. Screw in the Ancon 25/14 channel into place. Insulation thickness: 66-75mm.
BENEFITS
- Quick installation,
- Avoids compression of insulation,
- Improved thermal bridging.
Note: Channels and Ties are bought separately
Ancon 25-14 Restraint System.pdf
