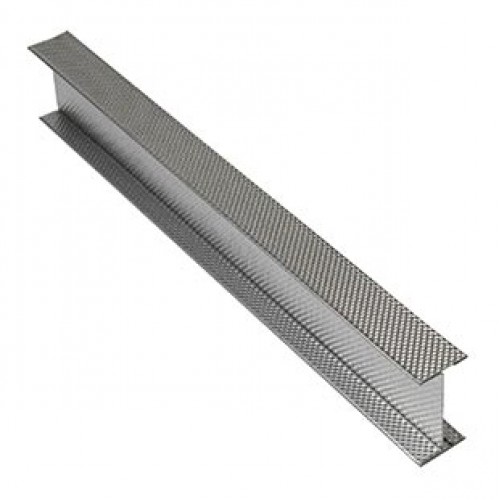

British Gypsum Gypframe 146 TI 90 I Stud 5 m (pack of 10)

British Gypsum Gypframe 146 TI 90 I Stud 5 m (pack of 10)
British Gypsum Gypframe 146 TI 90 I Stud 5 m (pack of 10)
British Gypsum Gypframe 146 TI 90 I Stud 5 m (pack of 10)
British Gypsum Gypframe 146 TI 90 I Stud 5 m (pack of 10)
British Gypsum Gypframe 146 TI 90 I Stud 5 m (pack of 10)
Price: £741.60 (£889.92 inc VAT)
2 or more £729.44 (£875.33 inc VAT)
3 or more £730.22 (£876.26 inc VAT)
4 or more £699.04 (£838.85 inc VAT)
  • Product Code: A1-815
  • Delivery Time: 2 - 4 days
  • Brand: British Gypsum
  • (Tech. support: 01159456123)
  • Model: 146 TI 90 'I' Stud - 5 m
  • Weight: 4.70kg
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Show other lengths

British Gypsum Gypframe 146 TI 90 'I' Stud 5 m (pack of 10)

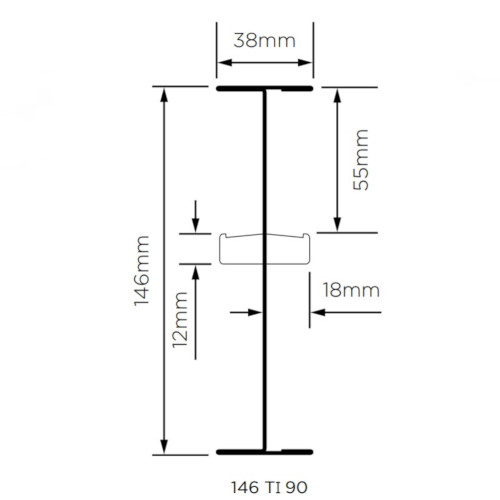

Width: 146mm
Length: 5000mm
Weight: 4.7kg

British Gypsum Gypframe 146 TI 90 5 m 'I' studs provide additional impact resistance due to the improved strength, unlike any other available Gypframe studs. They are the strongest of the whole Gypframe stud selection, and usually are used in systems with paramount board fixing strength, allowing increased partition height, but retaining the same partition width. Services can be easily routed through the partition due to the spaced structural apertures.

The studs are usually combined with ShaftWall which is a lightweight system which can be installed in the early construction phase, especially applicable to areas with limited access, providing a fire-protective structure for the inner elements. It is designed to meet air pressure and deflection requirements, but also the boundary requirements prescribed by the applicable Approved Document B of the Building Regulations. The system can be found in stairwells, service ducts and risers and lift shafts, providing a protective enclosure.

APPLICATION

Gypframe 146 TI 90 5 m 'I' studs are particularly applicable in systems with paramount board fixing strength.

CERTIFICATION

The product is in compliance with the:

  • British Standard BS 7364
  • European Standard EN 14195
  • American Standard ASTM C645
