British Gypsum Gypframe Shaftwall G102 Retaining Channel (pack of 10)

British Gypsum Gypframe Shaftwall G102 Retaining Channel (pack of 10)
British Gypsum Gypframe Shaftwall G102 Retaining Channel (pack of 10)
British Gypsum Gypframe Shaftwall G102 Retaining Channel (pack of 10)
British Gypsum Gypframe Shaftwall G102 Retaining Channel (pack of 10)
British Gypsum Gypframe Shaftwall G102 Retaining Channel (pack of 10)
Price: £58.33 (£70.00 inc VAT)
5 or more £57.37 (£68.84 inc VAT)
10 or more £56.41 (£67.69 inc VAT)
20 or more £54.97 (£65.96 inc VAT)
  • Product Code: A1-848
  • Delivery Time: 2 - 3 working days
  • Brand: British Gypsum
  • (Tech. support: 01159456123)
  • Model: G102 - 2.4 m
  • Weight: 5.04kg
Our ratings on 08-11-2024:
Google My Business Reviews
4.8 out of 5
Show other lengths

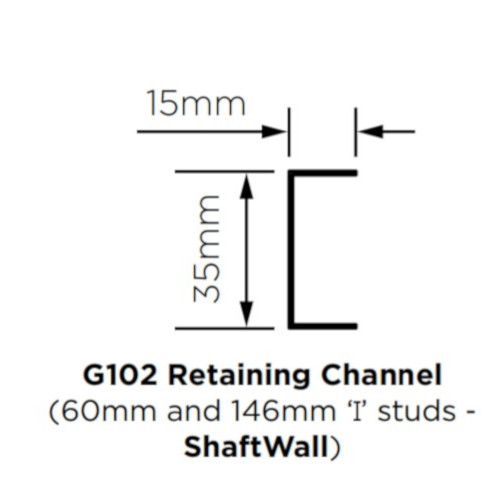

British Gypsum Gypframe Shaftwall G102 Retaining Channel (pack of 10)

Gauge: 0.4mm
Width: 35mm
Length: 2400mm
Weight: 5.04kg

British Gypsum Gypframe Shaftwall G102 Retaining Channel is one of the available Gypframe channels, especially designed to be used with the ShaftWall System, a lightweight system which can be installed in the early construction phase, especially applicable to areas with limited access, providing a fire-protective structure for the inner elements. It is designed to meet air pressure and deflection requirements, but also the boundary requirements prescribed by the applicable Approved Document B of the Building Regulations. The system can be found in stairwells, service ducts and risers and lift shafts, providing a protective enclosure.

APPLICATION

Shaftwall G102 Retaining Channel is used for high performance ShaftWall System.

CERTIFICATION

The product is in compliance with the:

  • European Standard EN 14195
