590mm Aluminium Rail System Connector (pack of 50)

Length: 590mm

590mm Aluminium Rail System Connector profile to be used in an External Thermal Insulation Systems with 60mm EPS. Can be used with other stiff insulation boards.


INSTALLATION

  • Fix the starter track of the rail system to the wall with dowel screws to the substrate.
  • Dowels should be installed at a max. spacing of 30 cm.
  • Apply an adhesive dab on the insulation board to cover at least 20% of the surface.

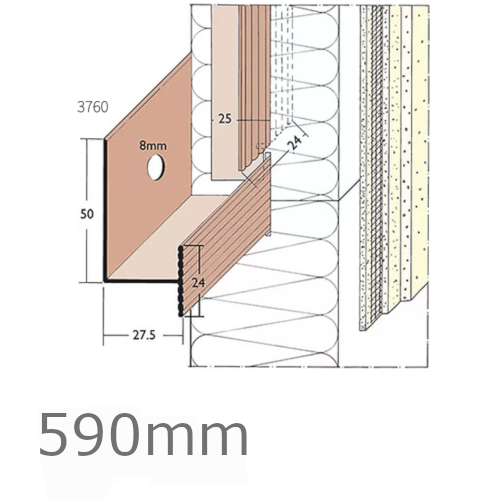

  • The insulation board must have a groove for the rail track to go in (as shown in the above photo).
  • Push the insulation board into the rail starter track and press it firmly to the wall.
  • Align the boards horizontally and vertically.
  • Push in the Wemico Aluminium Rail System Connector vertically.
  • Push the intermediate rail system track into the installed boards horizontally.
  • Fix the intermediate track with dowel screws.
  • Continue to install insulation boards upwards.
